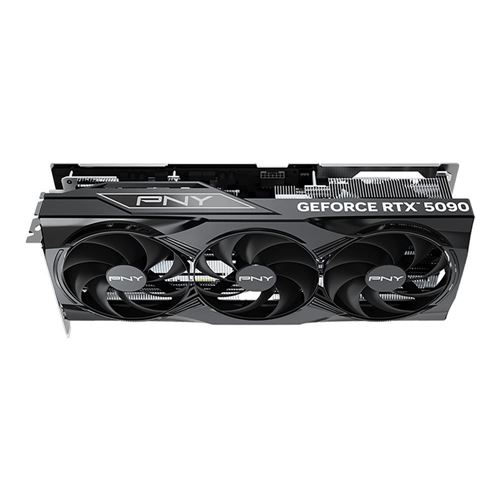

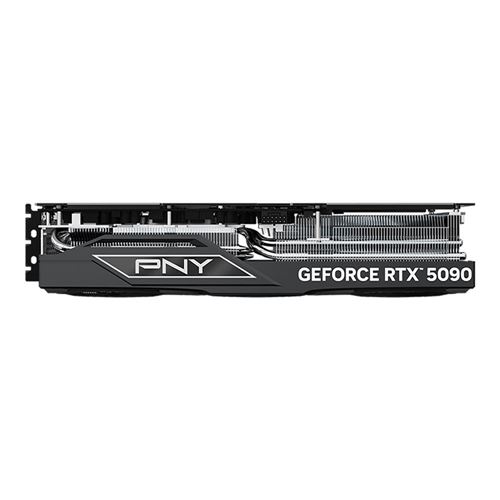

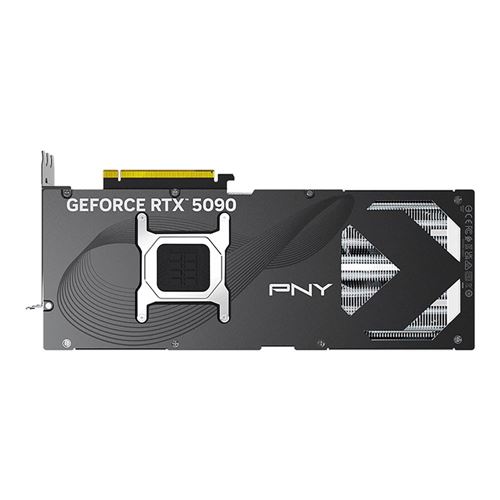

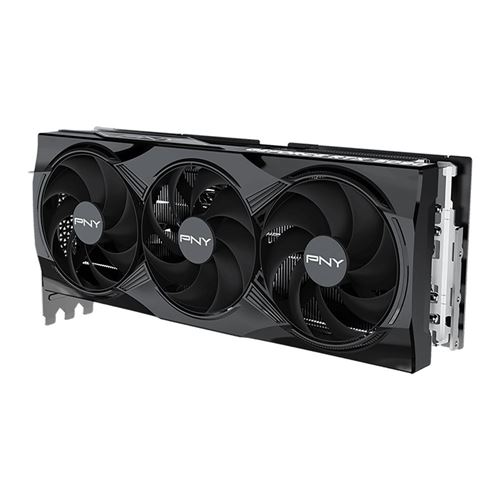

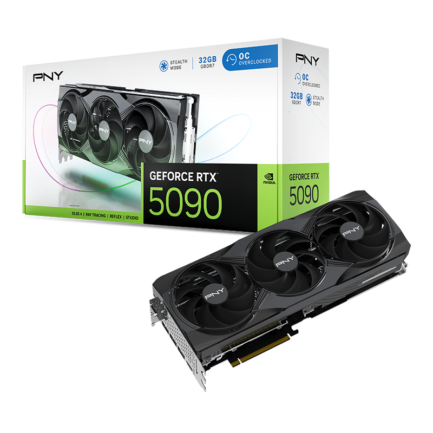

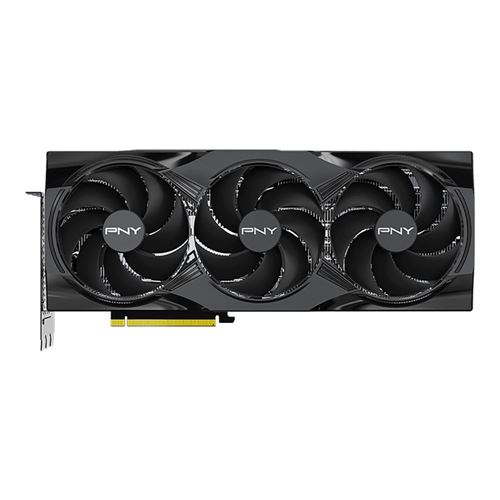

PNY NVIDIA GeForce RTX 5090 Overclocked Triple Fan 32GB GDDR7 PCLe 5.0 Graphics Card

Description

The PNY GeForce RTX™ 5090 Overclocked Triple Fan is a high-performance GPU featuring NVIDIA’s Blackwell architecture. It offers 21,760 CUDA cores, a base clock of 2.01 GHz, and a boost clock of 2.527 GHz. With 32 GB of GDDR7 memory and a 512-bit memory interface, it delivers exceptional performance and a memory bandwidth of 1,792 GB/s. The card supports DisplayPort 2.1b and HDMI 2.1b, with up to 8K resolution. It requires a 600W power draw and a 1,000W PSU. Its 3-fan cooling system ensures optimal performance, and it supports ray tracing and AI features for immersive gaming.

GPU and Performance:

• GPU Model: NVIDIA GeForce RTX 5090​

• CUDA Cores: 21,760​

• Base Clock Speed: 2.01 GHz

• Boost Clock Speed: Up to 2.527 GHz

Memory:

• Video Memory: 32 GB GDDR7​

• Memory Interface: 512-bit​

• Memory Bandwidth: 1,792 GB/s ​

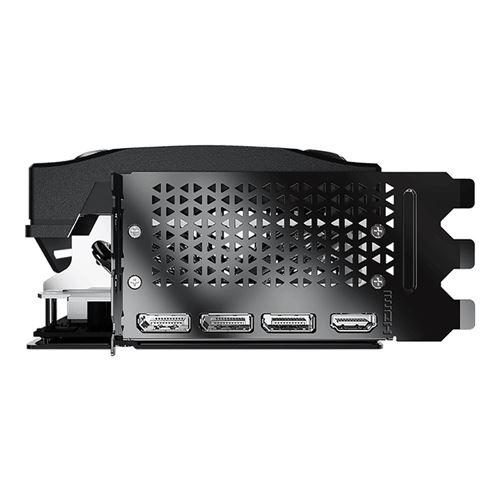

Display Outputs:

• DisplayPort: 3 x DisplayPort 2.1b

• HDMI: 1 x HDMI 2.1b​

• Maximum Resolution: Up to 4K at 480 Hz or 8K at 165 Hz with Display Stream Compression (DSC)

Power Requirements:

• Maximum Power Consumption: 600W

• Recommended System Power Supply: 1,000W​

• Power Connector: 1 x 16-pin PCIe 5.0 connector ​

Physical Dimensions:

• Length: 12.94 inches (328.68 mm)​

• Height: 5.42 inches (137.67 mm)​

• Width: 3.5-slot design (approximately 2.80 inches or 71.10 mm)

Cooling System:

• Cooling Type: Triple-fan open fansink design​

• Number of Fans: 3​

• Enhanced Airflow: Designed to provide optimal thermal performance during heavy loads

Additional Features:

• Architecture: Built on NVIDIA’s Blackwell architecture​

• AI and Ray Tracing: Supports advanced AI features and real-time ray tracing for enhanced gaming and creative applications​

• Software Support: Compatible with DirectX 12 Ultimate and OpenGL 4.6

Applications:

• Gaming: It handles 4K and 8K gaming with ease, supporting high frame rates and real-time ray tracing for an immersive experience.
• Content Creation: Perfect for professionals working with video editing, 3D rendering, animation, and graphic design, offering fast render times and support for AI-driven tools.

• AI and Machine Learning: Its advanced architecture and powerful CUDA cores make it well-suited for AI model training and deep learning applications.

• Virtual Reality (VR): Delivers smooth, high-quality VR experiences due to its powerful GPU and high resolution support.
